The iCarsoft HDI is the perfect scan tool for diagnosing and clearing trouble codes on most heavy duty diesel trucks and vehicles using J1587, J1708 and J1939 OBD protocols. It helps you diagnose multiple systems including Engine, Transmission, Brakes and more.

For Heavy Diesel Trucks, Buses & Tractors

The HDI is suitable for many heavy diesel trucks and vehicles using J1587, J1708 and J1939 OBD protocols. This includes:

Tow Trucks, buses, cement trucks, garbage trucks, municipality trucks, refrigerated trucks, mining trucks agricultural, industrial and construction diesel trucks.

Diamond, Ford, Freight-liner, GMC/Chevrolet, International, Kenworth, Mack, Mercedes Benz, Navistar, Volvo, Cummins, Detroit, Caterpillar and many more.

Scan Tool Functions

Read & Clear Trouble Codes - Diagnose heavy diesel trucks and vehicles using J1587, J1708 and J1939 OBD protocols. It helps you diagnose multiple systems including Engine, Transmission, Brakes and more. Also works with passenger cars using 16 pins OBD-II protocols CAN, KWP, J1850 and ISO protocols. (Powertrain Diagnosis Only)

I/M Readiness - Indicated whether or not the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Data Stream - Monitor important vehicle parameters in real-time. Data can include a number of customised gauges such as EGT, Torque, horsepower, etc. You can also graph, record and replay data in full colour.

Freeze Frame - When an emission related fault occurs, certain vehicle conditions are recorded by the OBD computer. This information is referred to as freeze frame data. A snapshot of the operating condition at the time of an emission related fault.

O2 Sensor Test - Allows retrieval and viewing of O2 sensor test results from the vehicle's on-board ECU.

On-Board Monitoring - This function can be utilised to read the results of on-board diagnostic monitoring tests for specific components/systems

EVAP System Test - The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

Vehicle Information - The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the vehicle.

Specifications

• Screen 2.8" full colour
• Input Voltage: range 8-36V
• Working current: Typically 100mA
• Typical Power: 1.2W
• Cable Connecting Method: 16PIN 6PIN 9PIN
• Working Ambient Temperature: 32 - 122 F
• Dimension: 121 X 82 X 26mm L/W/H
• Weight: 1.1Kgs

Package Includes:

• HDI Heavy Diesel Vehicle Scan Tool
• User's Manual

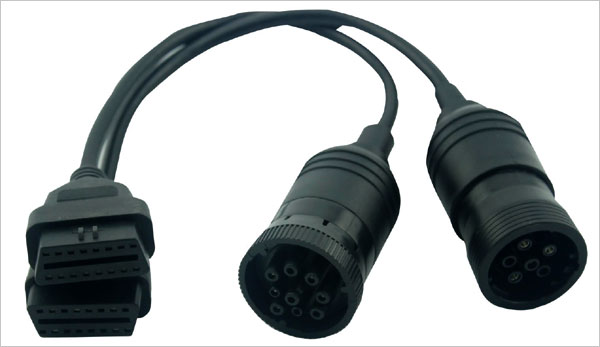

• OBD Cable 6PIN / 9PIN / 16PIN
• USB Cable - Connect to PC to update online
