Autohil AXW is a simple and easy to use OBDII WiFi car scanner that can help you connect to your vehicle's data using your smart devices. You can diagnose engine trouble codes and know why CHECK ENGINE light is on. You can also customise real-time fuel economy and performance gauges and log engine, trip and fuel data. Autohil AXW scanner helps you connect to heaps of OBDII Apps available on Google Store and iTunes giving you more choices on how to use. Simply connect the scanner to OBDII port and pair with your preferred App(s) or Software.



Customised Dashboards

Pair your AXW WIFI Scan Tool to your preferred performance App and see what your car is doing in real-time: get OBD2 fault codes, car performance gauges, live sensor data and more! Real-time performance data include:



Engine RPM Calculated Load Value Coolant Temperature
Fuel System Status Vehicle Speed Short Term Fuel Trim
Long Term Fuel Trim Intake Manifold Pressure Timing Advance
Intake Air Temperature Air Flow Rate Absolute Throttle Position
Oxygen sensor voltages Fuel System status Fuel Pressure
Fuel Consumption Trip data Many others



*OBDII sensor gauges are vehicle dependent.





Diagnose Engine Trouble Codes DTCs

Get engine trouble code & its'meanings right on your smartphone’s screen. Know why your engine light is on and turn it off.

[Reads & Clear DTCs]: Read Engine diagnostic trouble codes DTC and provide both the code and its' meaning and clear them

[Engine Live Data]: Customise and monitor real-time engine parameters.

[Freeze Frame Data]: Recorded system parameters values at the time when engine malfunction first occurred

[Readiness test]: Test and check status of engine emission control systems

[VIN]: Read vehicle info such as Vehicle Identification Number VIN, Calibration IDs CALID and Calibration Verification Number CVN

*Most Apps can only diagnose (read & clear) generic engine fault codes.



Flexible App Software Compatibility

*Apps are sold separately Functions and capabilities differ from one App to another. Autohil scanners work with most OBD2 apps available on Google and iOS stores.



Easy To Setup Scan Tool

Plug the scan tool into your vehicle’s OBD-II port and pair with performance App of your choice.

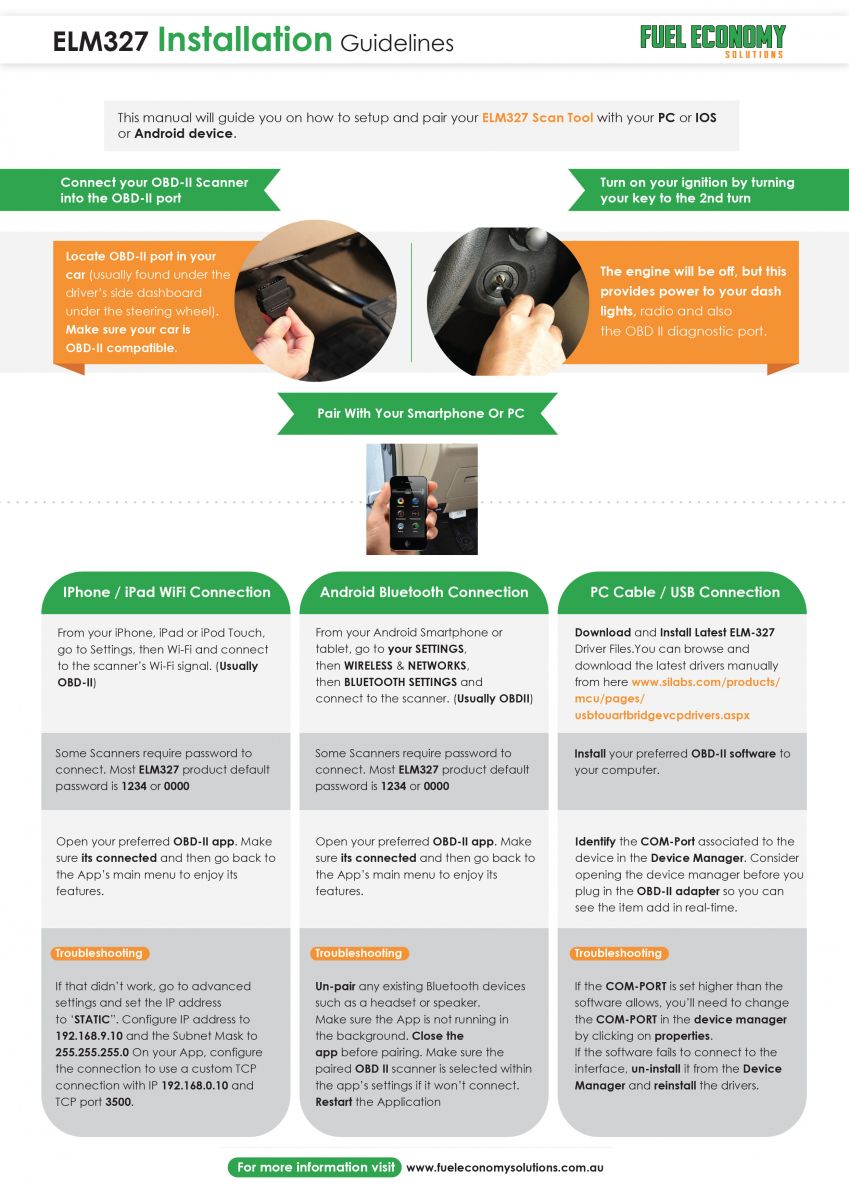

ELM327 Installation Guidelines



Specifications

Upgraded 25K80 Chip for faster more reliable readings
SSID: WiFi_OBDII
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 FT (Line of sight)
Antenna Type: Internal
Operating voltage: 9V-16V
Standby current: 60mAH
Power Consumption: 0.75 Watts
Wi-Fi Standard: 802.11a/b/g
Operating Temperature: -15 to 100
Dimmensions: Width 4.4cm Length 8cm Heigth 2.5cm





Compatible OBDII Protocols

ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1850 PWM (Found on many Ford vehicles)
SAE J1850 VPW (Found on many GM vehicles)



SKU AUTOHIL-AXW
Barcode # 0735850489810
Brand Autohil
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.200m
Unit Of Measure ea
